Lexmoto LXR SE 125 Euro 5 Overview

Other Information

Model Code :

SY125-10-SE-E5

Fuel Tank Capacity :

13.5 Litres

About the Lexmoto LXR SE 125 Euro 5

A proven class leader that`s dominated the sales charts, the LXR SE gets a full refresh for 2021. Updated to meet Euro 5 standards, at its heart sits an all-new 125cc single cylinder engine, offering better performance throughout the entire rev range, a better pick up on the throttle and a smoother ride. Performance isn`t the only headline figure though; a well-rounded chassis gives a sporting, yet comfortable experience. This is further complemented by a newly designed rear shock linkage, 37mm upside down forks and lightweight aluminum swingarm to give the LXR SE class leading handling. Upfront, the full colour TFT display unit adds a touch not seen before in the supersport 125 sector, and the aggressive LED headlight unit brings a distinctive look to the SE. Stopping comes courtesy of a twin petal disc brakes up front, with two pot calipers boasting yet another first in class. Our flagship model has just upped the ante considerably in the 125cc market, why not see what all the fuss is about?

This product was added at 4:18pm on Thursday 15 October 2020
Last updated: Jan 29, 2023

Need parts for the Lexmoto LXR SE 125 Euro 5?

CMPO are the offical parts supplier of all Lexmoto parts. In addition to this they also stock parts for all other brands in the Chinese Motorcycle Dealer repertoire.

Click here to visit Chinese Motorcycle Parts Online

Found Cheaper?

We're still better value! Don't get caught out, read why you should take care who you shop with.

Lexmoto LXR SE 125 Euro 5 Specifications

Performance

Max Speed :

110 kph

Max Power :

9.3kW @9000

Max Torque :

11.0Nm @6750

Engine and Transmission

Engine Size :

125 cc

Engine Type:

Single Cylinder, 4 Stroke, Water Cooled

Engine Brand :

158MI-2P

Compression Ratio :

12:1

Gear Type :

6 Speed

Clutch Type :

Hand Operated

Drive Type :

Chain

Start System :

Electric Start

Ignition Type :

EFI

Battery Voltage :

12

Battery Capacity :

9

Wheel, Suspension and Brakes

Front Tyre :

110/70-17

Rear Tyre :

150/70-17

Tyre Brand :

CST

Tyre Model :

Tubeless

Front Suspension :

Upside Down Forks

Rear Suspension :

Monoshock

Front Brake :

Hydraulic Disc

Rear Brake :

Hydraulic Disc

Dimensions

Seat Height :

820 mm

Wheelbase :

1420 mm

Overall Length :

2050 mm

Overall Width :

720 mm

Overall Height :

1155 mm

Mass in Running Order :

167 kg

This is the weight/mass of an unladen vehicle but one which has all fluids correct and present within. It includes fuel in the tank to a minimum of 90% full.

Maximum Laden Mass :

317 kg

This is the maximum operating weight/mass of the vehicle as specified by the manufacturer including the vehicle's chassis, body, engine, engine fluids, fuel, accessories, rider, pillion and cargo.

Lexmoto LXR SE 125 Euro 5 Technical Data

Model Information

CAP/ABI Code

LXXR013SETO6C CYB

Power Output

Max. Power

9.3 kW @ RPM

Max. Torque

11.0 Nm @ RPM

Max. Speed

110 Km/h

Engine Settings

Capacity

125 cc

Compression Ratio

12:1

Stroke

4 Stroke

Valves per cylinder

4

Valve Train

DOHC

Engine Type

158MI-2P

Cylinders

Single

Cooling

Liquid Cooled

Idle Speed

1450 ^min-1

Timing and Ignition

Spark Plug

CR9E

Spark Plug Gap

0.6-0.8mm

HT Coil Primary Resistance

0.5Ω

HT Coil Secondary Resistance

6.75KΩ

Spark Plug Torque

12 Nm

Fuel System

EFI System

Delphi

EFI Plug Location

Under pillion seat

Valve Clearances

Exhaust Valve (Metric)

0.15-0.20 mm

Inlet Valve (Metric)

0.10-0.15 mm

Electrical

Battery Location

Right mid panel

Drive

Drive Type

Chain

Handling and Suspension

Fork Oil Volume

310 ml per leg

Rear Suspension

Mono

Front Pinch Bolt

13Nm

Front Brake

Disc

Rear Brake

Disc

Front Suspension

USD

Fork Oil Grade

10w

Tyre Pressures

Front

29 psi

Rear

32 psi

Fluids

Engine Oil Viscosity

10w/40

Brake Fluid Grade

Dot 4

Engine Oil Grade

SJ or later

Engine Oil Volume

900-1000 ml

Torque Settings

Front Wheel Spindle

63 Nm

Swingarm Pivot Securing Nut

60 Nm

Front brake Caliper Bolts

40 Nm

Front Brake Disc Bolts

35 Nm

Rear Shock Absorber Lower Nut/Bolt

60 Nm

Rear brake disc bolt torque

30 Nm

Rear Wheel Spindle Nut

80 Nm

Oil Filter Cover Bolts

8 Nm

Rear Shock Absorber Upper Nut/Bolt

50 Nm

Rear Wheel Sprocket Retaining Nuts

50 Nm

Oil Sump Drain Bolt

20 Nm

Front Wheel Spindle Pinch Bolt

13 Nm

Lower yoke pinch bolts

20 Nm

Riders Footrest Bolt Torque

30 Nm

Upper Yoke Pinch Bolts

15 Nm

Handlebar Clamp Bolts

25 Nm

Exhaust Silencer Mounting Bolt/Nut

45 Nm

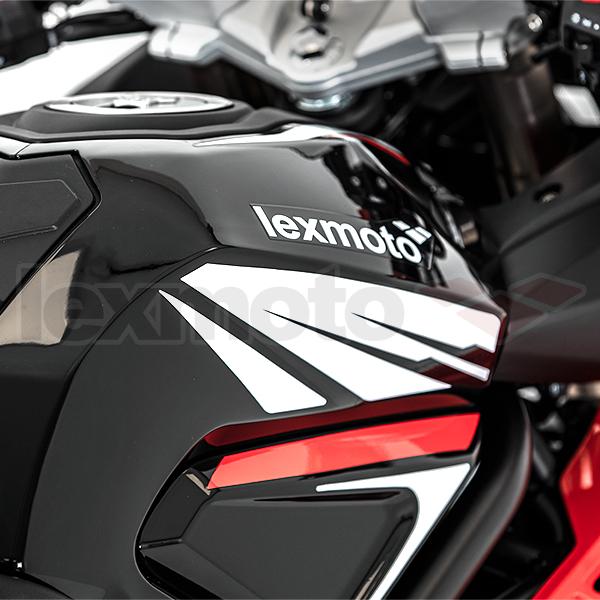

Lexmoto LXR SE 125 Euro 5 Gallery

** Pictures are for illustration purposes only

Lexmoto LXR SE 125 Euro 5 360° View
