LJ125T-18A-E55

125cc 4 Stroke

RRP £2,759.99*

TRADE CALL

Overview

Specifications

Technical Data

Gallery

Lexmoto XDV 125 E55 Overview

Other Information

Model Code :: LJ125T-18A-E55
Fuel Consumption :: 112 mpg
Fuel Tank Capacity :: 13.5 Litres

About the Lexmoto XDV 125 E55

BUILT FOR THE JOURNEY The XDV is your passport to adventure, built for riders who thrive on freedom and discovery. With its bold design and rugged capability, it`s ready to take you from city streets to the open road in style. Start-stop technology keeps things smooth and efficient, while keyless ignition lets you set off with ease. A liquid cooled engine powers you through every mile, and the adjustable windscreen adapts to your ride. LED lighting boosts visibility and flair, and handy under seat storage keeps your essentials tucked away and within reach. The XDV isn`t just built to move, it`s built to explore.

This product was added at 8:22am on Thursday 23 January 2025
Last updated: Aug 20, 2026

Need parts for the Lexmoto XDV 125 E55?

CMPO are the offical parts supplier of all Lexmoto parts. In addition to this they also stock parts for all other brands in the Chinese Motorcycle Dealer repertoire.

Click here to visit CMPO Parts

Found Cheaper?

We're still better value! Don't get caught out, read why you should take care who you shop with.

Lexmoto XDV 125 E55 Specifications

Performance

Max Speed :: 100 kph
Max Power :: 8.4kW @ 8500RPM
Max Torque :: 11Nm @ 6500RPM

Engine and Transmission

Engine Size :: 125 cc
Engine Type:: Single Cylinder, 4 Stroke, Water Cooled
Engine Brand :: LJ1P52MI-2
Bore x Stroke :: 5.24 x 5.79
Compression Ratio :: 11.0:1
Gear Type :: Twist and Go
Drive Type :: Belt
Start System :: Electric Start
Ignition Type :: EFI/ECU
Battery Voltage :: 12
Battery Capacity :: 12

Wheel, Suspension and Brakes

Front Tyre :: 110/70-13
Rear Tyre :: 130/70-13
Tyre Model :: Tubeless
Front Suspension :: Telescopic Forks
Rear Suspension :: Twin Shock Absorber
Front Brake :: Hydraulic Disc
Rear Brake :: Hydraulic Disc

Dimensions

Seat Height :: 810 mm
Wheelbase :: 1420 mm
Overall Length :: 1960 mm
Overall Width :: 780 mm
Overall Height :: 1330 mm
Mass in Running Order :: 156 kg
Maximum Laden Mass :: 316 kg

Lexmoto XDV 125 E55 Technical Data

Model Information

Minimum Licence Required: CBT or A1 (UK Entitlement)
Parking options: Centre and Side Stand
Length: 1960 mm
Shipping State: SKD - Semi Knocked Down
Seat Height: 800 mm
Fuel Tank Capacity: 13.5 l
CAP/ABI Code: LXXD013E5SC A 0E2B
Odometer Reading: Dual
Fuel Consumption: 113 mpg
Width: 780 mm
Mass in Running Order: 156 kg
Unladen Weight: 147 kg
Speedo Type: Digital
Max. Laden Mass: 316 kg
Build Difficulty: 3 - Reasonable (Out of 5)
Wheelbase: 1420 mm
Height: 1270 mm

Power Output

Max. Power: 8.4kW @ 8500 RPM kW @ RPM
Max. Torque: 11Nm@6500 Nm @ RPM
Max. Speed: 95 Km/h
Max. Speed: 59 Mph

Engine Settings

Capacity: 125 cc
Compression Ratio: 11:1
Stroke: 4 Stroke
Valves per cylinder: 2
Valve Train: SOHC
Engine Type: LJ1P52MI-2
Cylinders: Single
Cooling: Liquid Cooled
Idle Speed: 1700 +/- 150 ^min-1

Timing and Ignition

Spark Plug: CPR8EA-9

Valve Clearances

Exhaust Valve (Metric): 0.14-0.16 mm
Inlet Valve (Metric): 0.06-0.08 mm

Fuel System

EFI System: Bosch

Electrical

Fuse: 25, 20, 15, 10, 1 A
Indicator Bulb: 3 LEDs 12V 1.44W
Brake Light Bulb: LED 12V 9.5W / 6.4W
Side Light Bulb: 9 LEDs 12V 1.8W
Battery: 12V 12Ah
Headlight Bulb: LED 12V 9W dipped / 13.5W main

Drive

Drive Type: Belt

Handling and Suspension

Rear Suspension: Twin
Front Brake: Disc
Rear Brake: Disc
Front Suspension: Telescopic
Advanced Braking System: Combined Braking

Tyre Pressures

Front: 32 psi
Rear: 36 psi
Front Tyre: 110/70-13
Rear Tyre: 130/70-13
Tyre Type: Tubeless

Fluids

Brake Fluid Grade: Dot 4
Engine Oil Grade: 10w40
Engine Oil Volume: 1000 ml
Gearbox Oil Grade: SAE 80W-90 GL5
Gearbox Oil Volume: 150 ml

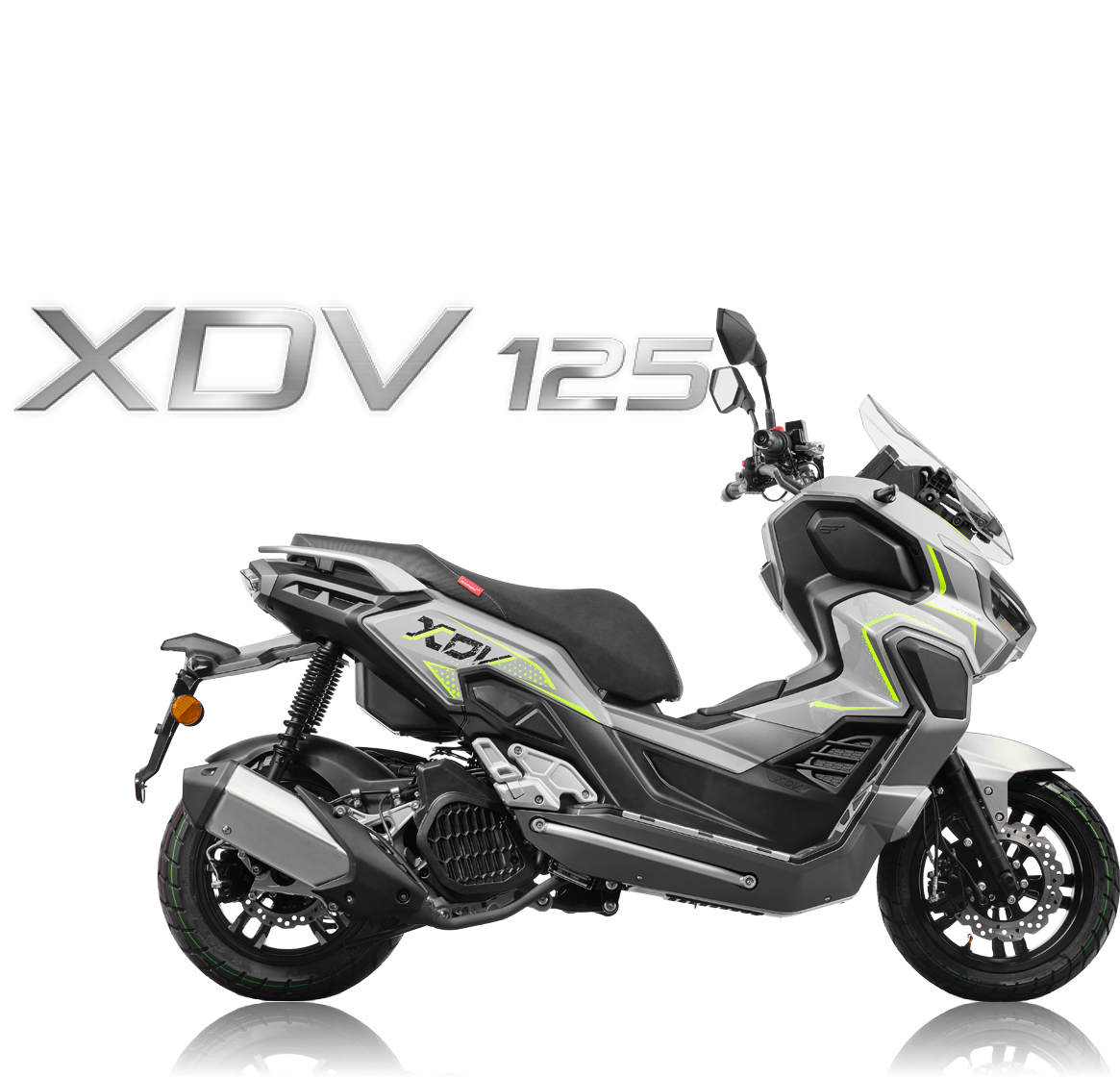

Lexmoto XDV 125 E55 Gallery
