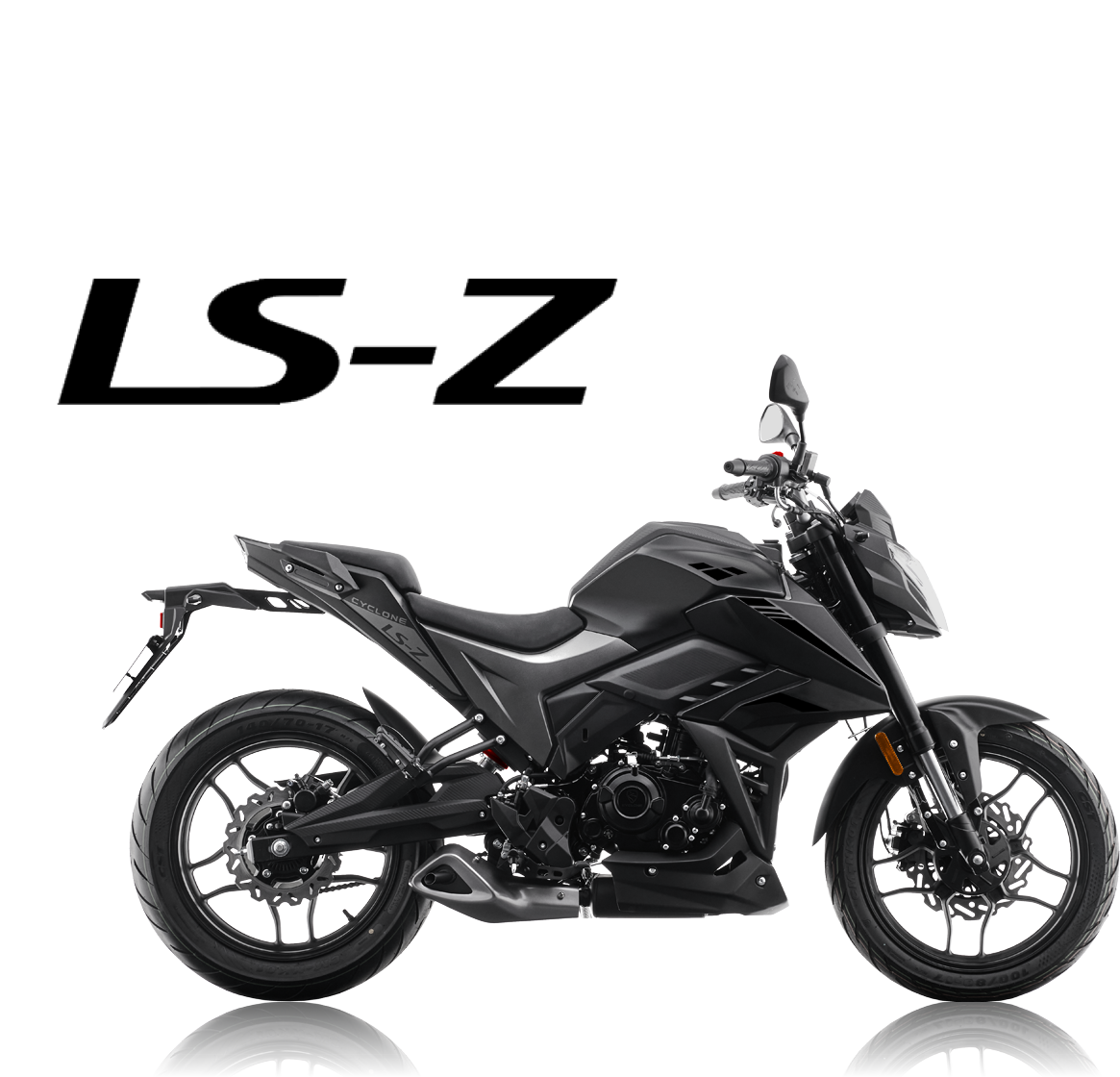

Lexmoto LS-Z 125 E55 Overview

Other Information

Model Code :

ZS125-39-E55

Fuel Consumption :

100 mpg

Fuel Tank Capacity :

13 Litres

About the Lexmoto LS-Z 125 E55

BUILT WITH PRECISION The LS-Z now exudes a refined, premium character perfectly balancing performance with sophistication. Its modernized design appeals to riders who seek both elegance and exhilaration, offering a machine that doesn`t just perform but captivates. A bold statement on two wheels, the LS-Z is built for riders who crave style and adrenaline in equal measure. Its sleek lines, sculpted bodywork, and premium finishes create an understated yet commanding aesthetic. The low slung exhaust and aerodynamic profile hint at the bike`s dynamic capability, while the lightweight frame and responsive handling ensure every ride feels effortless and controlled. Powered by a lively engine that delivers smooth yet thrilling performance through every gear, the LS-Z is designed to move with confidence whether carving through city streets or chasing open road freedom. More than just a motorcycle, it`s a refined expression of style, a seamless blend of power and precision, and your invitation to experience the road like never before.

This product was added at 10:51am on Wednesday 23 October 2024
Last updated: Jun 12, 2025

Need parts for the Lexmoto LS-Z 125 E55?

CMPO are the offical parts supplier of all Lexmoto parts. In addition to this they also stock parts for all other brands in the Chinese Motorcycle Dealer repertoire.

Click here to visit CMPO Parts

Found Cheaper?

We're still better value! Don't get caught out, read why you should take care who you shop with.

Lexmoto LS-Z 125 E55 Specifications

Performance

Max Speed :

110 kph

Max Power :

11kW @ 9500RPM

Max Torque :

11.5Nm @ 8500RPM

Engine and Transmission

Engine Size :

124 cc

Engine Type:

Single Cylinder, 4 Stroke, Water Cooled

Engine Brand :

Zongshen ZY125SR

Bore x Stroke :

5.8 x 4.7

Compression Ratio :

12.4:1

Gear Type :

6 Speed

Clutch Type :

Hand Operated

Drive Type :

Chain

Start System :

Electric Start

Ignition Type :

EFI/ECU

Battery Voltage :

12

Wheel, Suspension and Brakes

Front Tyre :

100/80-17

Rear Tyre :

140/70-17

Tyre Model :

Tubeless

Front Suspension :

Inverted Forks

Rear Suspension :

Monoshock

Front Brake :

Hydraulic Disc

Rear Brake :

Hydraulic Disc

Dimensions

Seat Height :

770 mm

Wheelbase :

1350 mm

Overall Length :

2030 mm

Overall Width :

800 mm

Overall Height :

1070 mm

Mass in Running Order :

149 kg

2.1.1. This is the weight/mass of an unladen vehicle but one which has all fluids correct and present within. It includes fuel in the tank to a minimum of 90% full.

Maximum Laden Mass :

314 kg

2.1.3. This is the maximum operating weight/mass of the vehicle as specified by the manufacturer including the vehicle's chassis, body, engine, engine fluids, fuel, accessories, rider, pillion and cargo.

Lexmoto LS-Z 125 E55 Technical Data

Model Information

Minimum Licence Required

CBT or A1 (UK Entitlement)

Speedo Type

Semi-Digital

Power Output

Max. Power

11kW @ 9500 RPM kW @ RPM

Max. Torque

11.0Nm @ 9500 RPM Nm @ RPM

Engine Settings

Capacity

124 cc

Compression Ratio

12.4:1

Stroke

4 Stroke

Valves per cylinder

4

Valve Train

DOHC

Engine Type

ZY125SR

Cylinders

Single

Cooling

Liquid Cooled

Idle Speed

1600 ^min-1

Bore x Stroke

58 x 47mm

Timing and Ignition

Spark Plug

CR9E

Valve Clearances

Exhaust Valve (Metric)

0.15-0.20 mm

Inlet Valve (Metric)

0.1-0.15 mm

Drive

Transmission

Manual - 6 Speed

Pitch

520

Drive Type

Chain

Handling and Suspension

Rear Suspension

Mono

Front Brake

Twin Disc

Rear Brake

Disc

Front Suspension

USD

Advanced Braking System

Combined Braking

Tyre Pressures

Front

36 psi

Rear

36 psi

Front Tyre

100/80-17

Rear Tyre

140/70-17

Tyre Type

Tubeless

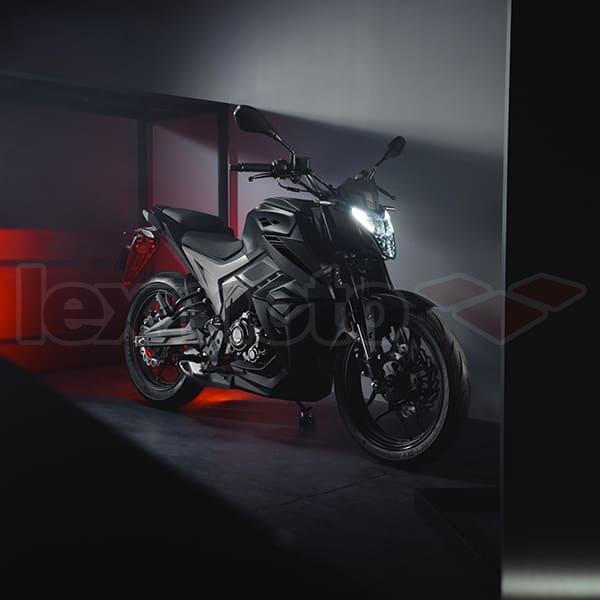

Lexmoto LS-Z 125 E55 Gallery

** Pictures are for illustration purposes only

Lexmoto LS-Z 125 E55 User Manuals
