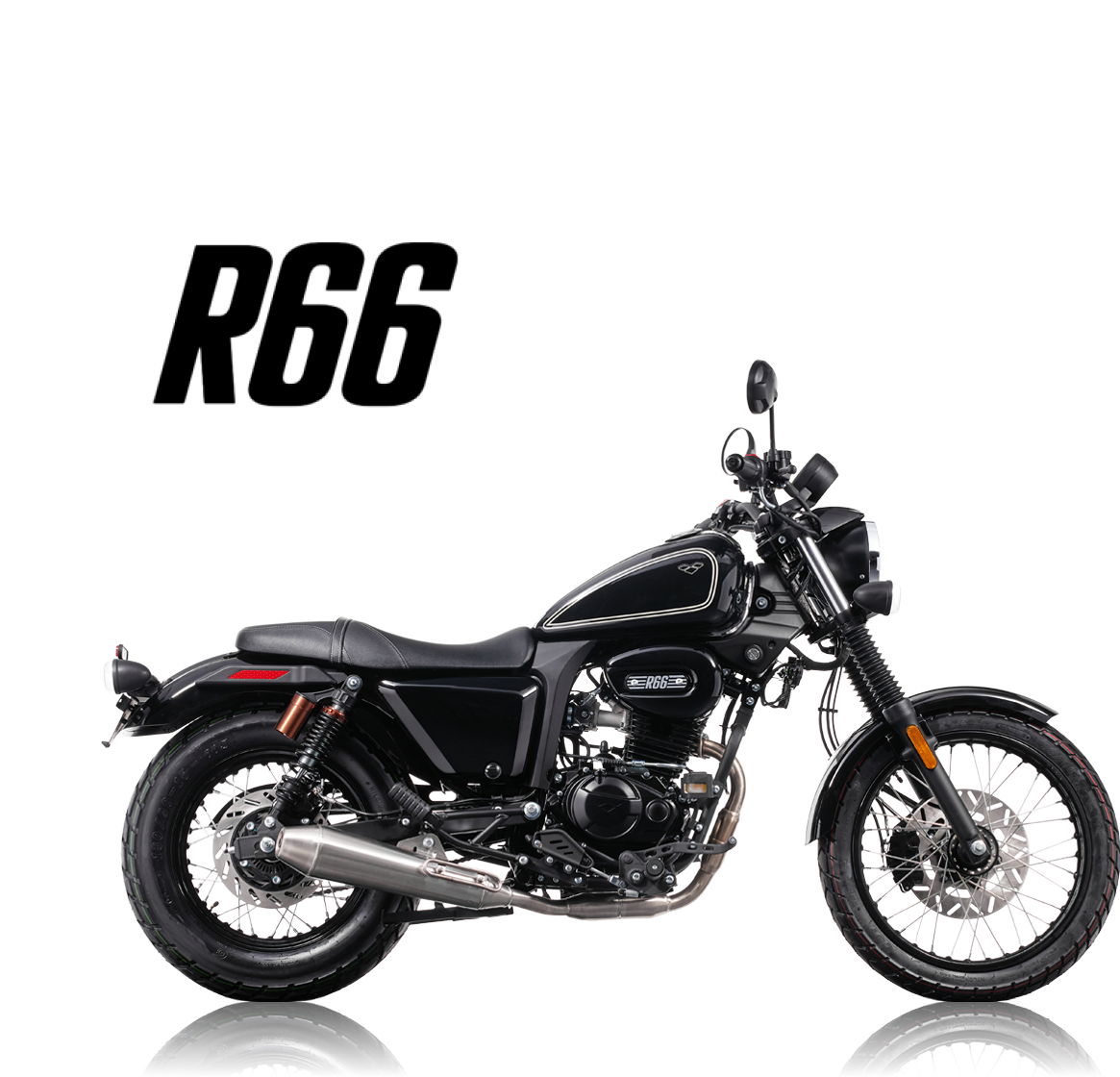

Lexmoto R66 E55 Overview

Other Information

Model Code :

SR125-A-E55

Fuel Consumption :

120 mpg

Fuel Tank Capacity :

13.5 Litres

About the Lexmoto R66 E55

START THE ENGINE, START THE STORY Some bikes are bought. Others are claimed. The R66 isn`t just a machine, it`s a calling. The kind of ride that doesn`t just get you there, but becomes part of who you are. From the first ignition to the last light of dusk, it carves out a space for escape, For solitude, For rebellion. Every ride is a slow burning film scene, the wind louder than your thoughts, the horizon wide open, the tank beneath you a canvas for memories yet to be made. You don`t just ride the R66. You live with it. You grow into it. It becomes your quiet companion on the days you need silence, and your loudest ally when the world feels too small. This is not about speed. Or spec sheets. This is about the long way home, the empty roads, and the thrill of riding something that just feels right.

This product was added at 1:23pm on Friday 08 November 2024
Last updated: May 31, 2025

Need parts for the Lexmoto R66 E55?

CMPO are the offical parts supplier of all Lexmoto parts. In addition to this they also stock parts for all other brands in the Chinese Motorcycle Dealer repertoire.

Click here to visit CMPO Parts

Found Cheaper?

We're still better value! Don't get caught out, read why you should take care who you shop with.

Lexmoto R66 E55 Specifications

Performance

Max Speed :

100 kph

Max Power :

9.0kW @ 9500RPM

Max Torque :

9.9Nm @ 8000RPM

Engine and Transmission

Engine Size :

125 cc

Engine Type:

Single Cylinder, 4 Stroke, Air Cooled

Engine Brand :

ZS157FMI-4

Bore x Stroke :

5.73 x 4.84

Compression Ratio :

12.0:1

Gear Type :

5 Speed

Clutch Type :

Hand Operated

Drive Type :

Chain

Start System :

Electric Start

Ignition Type :

EFI/ECU

Battery Voltage :

12

Battery Capacity :

7

Wheel, Suspension and Brakes

Front Tyre :

90/90-18

Rear Tyre :

130/90-15

Tyre Model :

Tubed

Front Suspension :

Inverted Forks

Rear Suspension :

Twin Shock Absorber

Front Brake :

Hydraulic Disc

Rear Brake :

Hydraulic Disc

Dimensions

Seat Height :

720 mm

Wheelbase :

1380 mm

Overall Length :

2061 mm

Overall Width :

835 mm

Overall Height :

1105 mm

Mass in Running Order :

144 kg

2.1.1. This is the weight/mass of an unladen vehicle but one which has all fluids correct and present within. It includes fuel in the tank to a minimum of 90% full.

Maximum Laden Mass :

294 kg

2.1.3. This is the maximum operating weight/mass of the vehicle as specified by the manufacturer including the vehicle's chassis, body, engine, engine fluids, fuel, accessories, rider, pillion and cargo.

Lexmoto R66 E55 Technical Data

Model Information

Minimum Licence Required

CBT or A1 (UK Entitlement)

Odometer Reading

Miles

Power Output

Max. Power

9kW @ 9500rpm kW @ RPM

Max. Torque

9.9Nm @8000RPM Nm @ RPM

Max. Speed

100 Km/h

Engine Settings

Capacity

125 cc

Compression Ratio

12:1

Stroke

4 Stroke

Valves per cylinder

4

Valve Train

DOHC

Engine Type

157FMI-4

Cylinders

Single

Cooling

Air Cooled

Idle Speed

1550 ^min-1

Bore x Stroke

57.3 x 48.4mm

Timing and Ignition

Spark Plug

JH9RC

Valve Clearances

Exhaust Valve (Metric)

0.05-0.08 mm

Inlet Valve (Metric)

0.05-0.08 mm

Fuel System

EFI System

FAI NM 15X6

Drive

Transmission

Manual - 6 Speed

Drive Type

Chain

Handling and Suspension

Rear Suspension

Twin

Front Brake

Disc

Rear Brake

Disc

Front Suspension

Telescopic

Advanced Braking System

Anti-Lock Braking

Tyre Pressures

Front

32 psi

Rear

32 psi

Tyre Type

Tubed

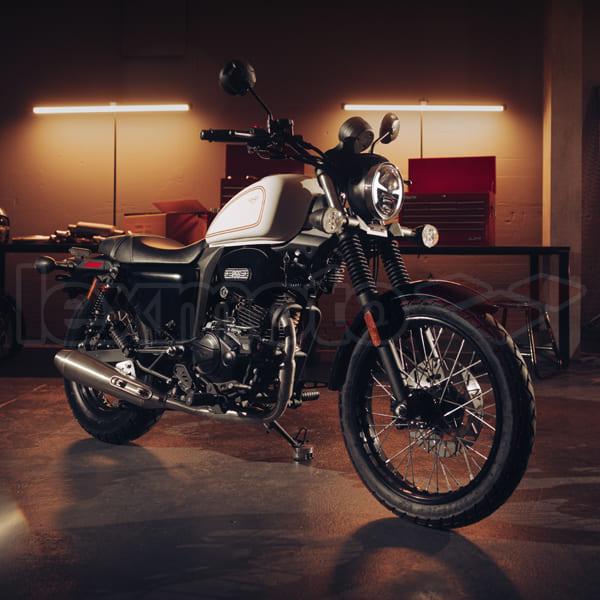

Lexmoto R66 E55 Gallery

** Pictures are for illustration purposes only

Lexmoto R66 E55 User Manuals
