SK125-22-E4

125cc 4 Stroke

Black Grey

This product is discontinued and no longer available to order

Lexmoto Venom 125 EFI Overview

Other Information
Model Code :
SK125-22-E4
Fuel Tank Capacity :
14 Litres

About the Lexmoto Venom 125 EFI

Already proven to be one of Lexmoto`s most popular bikes and there are no doubts as to why. The Venoms become a `must have` amongst new riders. An ultra-smooth 4 stroke engine fitted with a CBB balance shaft, combined front and rear braking for maximum stopping power and a rear mono shock system give the less experienced rider confidence to go further. Detailing, like the intuitive pillion handle system adaptable into a luggage rack and the MP3 system which enable the rider to enjoy their music via USB, Bluetooth of FM radio, all controlled from the top of the fuel tank. Its no wonder the Venom won top prize at the Canton Design Awards. The imposing fuel tank, body detailing and unmissable presence make this sporty street bike a head turner at every red light.


This product was added at 12:18pm on Thursday 16 June 2016
Last updated: Mar 19, 2024


CMPO Parts

Need parts for the Lexmoto Venom 125 EFI?


CMPO are the offical parts supplier of all Lexmoto parts. In addition to this they also stock parts for all other brands in the Chinese Motorcycle Dealer repertoire.

Click here to visit CMPO Parts


Found Cheaper?

We're still better value! Don't get caught out, read why you should take care who you shop with.

This product is discontinued and no longer available to order

Lexmoto Venom 125 EFI Specifications

Performance
Max Speed :
105 kph
Max Power :
8.5kw@9000rpm
Max Torque :
9.5 N.m @ 7000rpm
Engine and Transmission
Engine Size :
124 cc
Engine Type:
Single Cylinder, 4 Stroke, Air Cooled
Engine Brand :
SK157FMI-G
Bore x Stroke :
56.5 x 49.6
Compression Ratio :
9.5:1
Gear Type :
1 Down - 4 Up
Clutch Type :
Hand Operated
Drive Type :
Chain
Start System :
Electric Start
Battery Voltage :
12
Wheel, Suspension and Brakes
Front Tyre :
110/80-17
Rear Tyre :
130/70-17
Tyre Brand :
CST
Tyre Model :
Tubeless
Front Suspension :
Telescopic Forks
Rear Suspension :
Mono Shock Absorber
Front Brake :
Hydraulic Disc
Rear Brake :
Hydraulic Disc
Dimensions
Seat Height :
805 mm
Wheelbase :
1380 mm
Overall Length :
2040 mm
Overall Width :
780 mm
Overall Height :
1100 mm
Mass in Running Order :
144 kg
This is the weight/mass of an unladen vehicle but one which has all fluids correct and present within. It includes fuel in the tank to a minimum of 90% full.
Maximum Laden Mass :
294 kg
This is the maximum operating weight/mass of the vehicle as specified by the manufacturer including the vehicle's chassis, body, engine, engine fluids, fuel, accessories, rider, pillion and cargo.

This product is discontinued and no longer available to order

Lexmoto Venom 125 EFI Technical Data

Model Information
Minimum Licence Required
CBT or A1 (UK Entitlement)
Parking options
Centre and Side Stand
Shipping State
SKD - Semi Knocked Down
Fuel Tank Capacity
14 l
CAP/ABI Code
LXVM012 CO5C FTB
Odometer Reading
Dual
Speedo Type
Digital
Build Difficulty
3 - Reasonable (Out of 5)
Power Output
Max. Power
8.5 @ 9000 kW @ RPM
Engine Settings
Capacity
125 cc
Compression Ratio
9.5;1
Stroke
4 Stroke
Valves per cylinder
2
Engine Type
SK157FMI-D
Cylinders
Single
Cooling
Air Cooled
Bore x Stroke
56.5mm x 49.5mm
Timing and Ignition
Spark Plug Gap
0.6mm~0.7mm
Ignition
E.F.I
Fuel System
EFI System
FAI
EFI Plug Location
Under Seat
Valve Clearances
Exhaust Valve (Metric)
0.08 mm
Inlet Valve (Metric)
0.07 mm
Electrical
Battery Location
Behind Left Lower Panel
USB Location
Uder Pillion Seat
Battery
12V 7AH
Headlight Bulb
HS1
Drive
Pitch
428
Front Sprocket
15 T
Rear Sprocket
41 T
Chain
126 Links
Handling and Suspension
Fork Oil Volume
160 ml per leg
Fork Oil Grade
15w
Tyre Pressures
Front
32 psi
Rear
32 psi
Fluids
Brake Fluid Volume
50~100 ml
Brake Fluid Grade
DOT4
Engine Oil Grade
SAE 10W-40
Engine Oil Volume
1000 ml
Fork Oil Air Gap
220 mm

This product is discontinued and no longer available to order

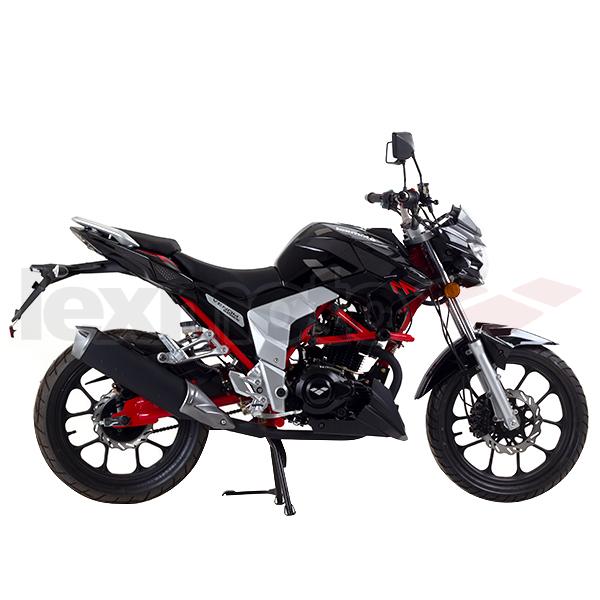

Lexmoto Venom 125 EFI Gallery



** Pictures are for illustration purposes only

This product is discontinued and no longer available to order

Lexmoto Venom 125 EFI 360° View

Hold down the left mouse button on the bike and scroll side to side to rotate the bike.
0%

    This product is discontinued and no longer available to order

    Lexmoto Venom 125 EFI Media


    YouTube Videos
    Lexmoto Venom 125cc EFI: First Ride Uploaded: Jul 24, 2017

    This product is discontinued and no longer available to order

    Lexmoto Venom 125 EFI Downloads


    A6 Bike brochure for Venom 125

    A6 Bike brochure for Venom 125

    Created: Sep 25, 2017
    Size: 1.4

    * Recommended Retail Prices

    RRP Prices are inclusive of VAT and includes Full Assembly, Full Pre-delivery Inspection (PDI) and a 24-month warranty, but can vary according to different geographic locations as Dealers may incorporate more comprehensive warranty and service plans into their pricing and may also offer accessories or other services above standard sales. Prices in Scotland, NI and offshore islands may be higher. Government first registration fee and vehicle excise duty are not included and will be charged at the current rate except for the cost of the physical number plate, which will be included in the price of the vehicle.
