Lexmoto Diablo 125 EFI Overview

Other Information

Model Code :

LJ125T-8M-E4

Fuel Tank Capacity :

6 Litres

About the Lexmoto Diablo 125 EFI

The Diablo has everything of a well styled sports scooter which is built to specifications that far surpass its price tag. Modern Italian style looks, and a racy 6.5Kw EFI overhead cam power plant which is the most powerful of the all the Lexmoto scooter range. The front and rear combined disc brakes and jolt soaking suspension allow nimble handling around the twists. An easy read digital display combines flair and practicality and the striking LED headlight unit warns others of your impending arrival.

This product was added at 11:31am on Tuesday 10 January 2017
Last updated: Apr 19, 2024

Need parts for the Lexmoto Diablo 125 EFI?

CMPO are the offical parts supplier of all Lexmoto parts. In addition to this they also stock parts for all other brands in the Chinese Motorcycle Dealer repertoire.

Click here to visit CMPO Parts

Found Cheaper?

We're still better value! Don't get caught out, read why you should take care who you shop with.

Lexmoto Diablo 125 EFI Specifications

Performance

Max Speed :

90 kph

Max Power :

6.5KW @ 7500

Engine and Transmission

Engine Size :

125 cc

Engine Type:

Single Cylinder, 4 Stroke, Air Cooled

Engine Brand :

1P52QMI

Bore x Stroke :

52.4 x 57.8

Gear Type :

Twist and Go

Drive Type :

Belt

Start System :

Electric Start

Ignition Type :

CDI

Battery Voltage :

12v

Wheel, Suspension and Brakes

Front Tyre :

120/60-13

Rear Tyre :

130/60-13

Tyre Brand :

CST

Tyre Model :

Tubeless

Front Suspension :

Telescopic Forks

Rear Suspension :

Mono Shock Absorber

Front Brake :

Hydraulic Disc

Rear Brake :

Hydraulic Disc

Dimensions

Seat Height :

790 mm

Wheelbase :

1305 mm

Overall Length :

1840 mm

Overall Width :

690 mm

Overall Height :

1150 mm

Mass in Running Order :

114 kg

This is the weight/mass of an unladen vehicle but one which has all fluids correct and present within. It includes fuel in the tank to a minimum of 90% full.

Maximum Laden Mass :

264 kg

This is the maximum operating weight/mass of the vehicle as specified by the manufacturer including the vehicle's chassis, body, engine, engine fluids, fuel, accessories, rider, pillion and cargo.

Lexmoto Diablo 125 EFI Technical Data

Model Information

Minimum Licence Required

CBT or A1 (UK Entitlement)

Parking options

Centre and Side Stand

Shipping State

SKD - Semi Knocked Down

CAP/ABI Code

LXDO013FISC A BUB

Odometer Reading

Dual

Speedo Type

Digital

Build Difficulty

3 - Reasonable (Out of 5)

Power Output

Max. Power

6.5 @ 7500 kW @ RPM

Engine Settings

Capacity

125 cc

Compression Ratio

10.5:1

Stroke

4 Stroke

Valves per cylinder

2

Engine Type

LJ1P52QMI

Cylinders

Single

Cooling

Air Cooled

Bore x Stroke

52.4mmX57.8mm

Timing and Ignition

Spark Plug

NGKÃ??¯¼?CR7HSA

Ignition

EFI

Valve Clearances

Exhaust Valve (Metric)

0.07-0.12 mm

Inlet Valve (Metric)

0.07-0.12 mm

Fuel System

Carburettor Type

EFI Delphi

EFI System

Delphi

EFI Plug Location

Behind Rear Right Panel

Electrical

Fuse

15 A

Battery Location

Under Footwell Panel

Battery

12V7Ah

Drive

Drive Belt

818 19.7 28

Handling and Suspension

Fork Oil Volume

115 ml per leg

Fork Oil Grade

10W

Tyre Pressures

Front

29 psi

Rear

33 psi

Fluids

Engine Oil Grade

SAE 10W-40

Engine Oil Volume

850 ml

Gearbox Oil Grade

GX 80W-90 API GL-4

Gearbox Oil Volume

150 ml

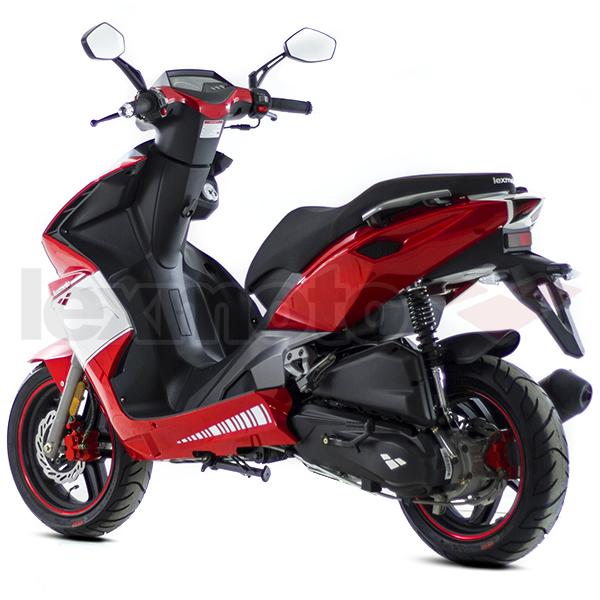

Lexmoto Diablo 125 EFI Gallery
