The UK's largest distributor for learner legal vehicles

KD125-K

125cc 4 Stroke

Black Red

This product is discontinued and no longer available to order

Kiden Pisces 125 Overview

Other Information
Model Code :
KD125-K

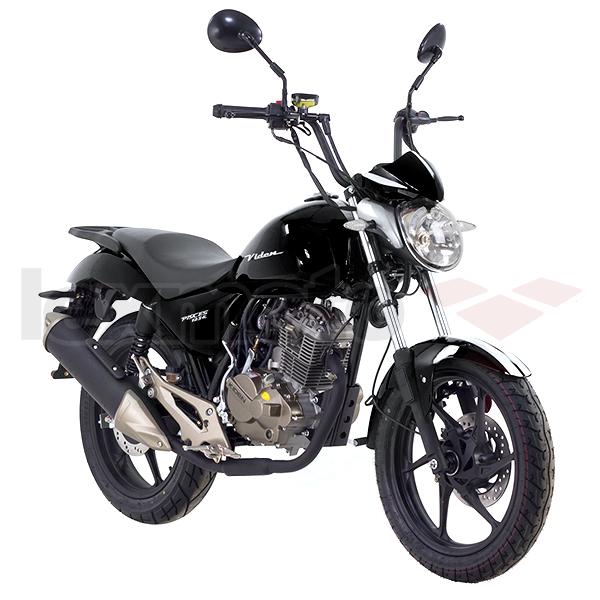

About the Kiden Pisces 125

Delivering the very best in affordable quality Lexmoto bring you the Kiden range.If you want the styling of a cruiser with comfortable commuter credentials then the Pisces is going to be the bike for you! The model uses a reliable 4 stroke overhead cam engine which provides a smooth and enjoyable riding experience. The model uses a twin shock rear which delivers stable handling. When combined with the disc brake front and rear the Pisces is sure to inspire confidence from new riders. With modern design elements and a superb quality of finish the Pisces is sure to turn heads and inspire many adventures.


This product was added at 12:02pm on Monday 23 January 2017
Last updated: Mar 19, 2024


CMPO Parts

Need parts for the Kiden Pisces 125?


CMPO are the offical parts supplier of all Lexmoto parts. In addition to this they also stock parts for all other brands in the Chinese Motorcycle Dealer repertoire.

Click here to visit CMPO Parts


Found Cheaper?

We're still better value! Don't get caught out, read why you should take care who you shop with.

This product is discontinued and no longer available to order

Kiden Pisces 125 Specifications

Performance
Max Speed :
90 kph
Max Power :
8kw @ 9000
Engine and Transmission
Engine Size :
124 cc
Engine Type:
Single Cylinder, 4 Stroke, Air Cooled
Engine Brand :
KD156FMI-E
Gear Type :
1 Down - 4 Up
Clutch Type :
Hand Operated
Drive Type :
Chain
Start System :
Electric Start
Ignition Type :
EFI
Wheel, Suspension and Brakes
Front Tyre :
90/90-17
Rear Tyre :
130/70-17
Front Suspension :
Telescopic Forks
Rear Suspension :
Twin Shock Absorber
Front Brake :
Hydraulic Disc
Rear Brake :
Hydraulic Disc
Dimensions
Seat Height :
750 mm
Wheelbase :
1310 mm
Overall Length :
1993 mm
Overall Width :
750 mm
Overall Height :
1130 mm
Mass in Running Order :
130 kg
This is the weight/mass of an unladen vehicle but one which has all fluids correct and present within. It includes fuel in the tank to a minimum of 90% full.
Maximum Laden Mass :
280 kg
This is the maximum operating weight/mass of the vehicle as specified by the manufacturer including the vehicle's chassis, body, engine, engine fluids, fuel, accessories, rider, pillion and cargo.

This product is discontinued and no longer available to order

Kiden Pisces 125 Technical Data

Model Information
Minimum Licence Required
CBT or A1 (UK Entitlement)
Parking options
Centre and Side Stand
Shipping State
SKD - Semi Knocked Down
Fuel Tank Capacity
18 l
Odometer Reading
Dual
Speedo Type
Digital
Build Difficulty
2 - Straight Forward (Out of 5)
Engine Settings
Stroke
4 Stroke
Valve Train
OHC
Cylinders
Single
Cooling
Air Cooled
Fuel System
EFI System
Mikuni
EFI Plug Location
Under Seat
Valve Clearances
Exhaust Valve (Metric)
0.07-0.09 mm
Inlet Valve (Metric)
0.06-0.08 mm
Electrical
Battery Location
Behind Right Lower Panel
Fluids
Engine Oil Grade
10w40
Engine Oil Volume
1000 ml

This product is discontinued and no longer available to order

Kiden Pisces 125 Gallery



** Pictures are for illustration purposes only

This product is discontinued and no longer available to order

Kiden Pisces 125 360° View

Hold down the left mouse button on the bike and scroll side to side to rotate the bike.
0%

    This product is discontinued and no longer available to order

    Kiden Pisces 125 Downloads


    A6 Bike brochure for Kiden Pices 125

    A6 Bike brochure for Kiden Pices 125

    Created: Sep 25, 2017
    Size: 1.1

    * Recommended Retail Prices

    RRP Prices are inclusive of VAT and includes Full Assembly, Full Pre-delivery Inspection (PDI) and a 24-month warranty, but can vary according to different geographic locations as Dealers may incorporate more comprehensive warranty and service plans into their pricing and may also offer accessories or other services above standard sales. Prices in Scotland, NI and offshore islands may be higher. Government first registration fee and vehicle excise duty are not included and will be charged at the current rate except for the cost of the physical number plate, which will be included in the price of the vehicle.
