The UK's largest distributor for learner legal vehicles

HJ125-J-E4

125cc 4 Stroke

Infinity Black Torrent Blue Precision Grey

This product is discontinued and no longer available to order

Lexmoto Assault 125 EFI Overview

Other Information
Model Code :
HJ125-J-E4
Fuel Consumption :
118 mpg
Fuel Tank Capacity :
15 Litres

About the Lexmoto Assault 125 EFI

If your ride sees you encounter tricky terrain and challenging potholes then the Assault is going to be the bike for you. Built around a smooth 4 stroke overhead cam engine this 125cc motorcycle is complimented with a sleek fairing design and robust build quality. With sturdy telescopic forks and a hydraulic disc on the front leading the way and an efficient twin shock rear and disk brake follow behind, the Assault delivers a comfortable riding experience no matter the conditions.


This product was added at 10:51am on Wednesday 30 January 2019
Last updated: Mar 19, 2024


CMPO Parts

Need parts for the Lexmoto Assault 125 EFI?


CMPO are the offical parts supplier of all Lexmoto parts. In addition to this they also stock parts for all other brands in the Chinese Motorcycle Dealer repertoire.

Click here to visit CMPO Parts


Found Cheaper?

We're still better value! Don't get caught out, read why you should take care who you shop with.

This product is discontinued and no longer available to order

Lexmoto Assault 125 EFI Specifications

Performance
Max Speed :
100 kph
Max Power :
8kW @ 9000
Max Torque :
9Nm @ 7500
Engine and Transmission
Engine Size :
124 cc
Engine Type:
Single Cylinder, 4 Stroke, Air Cooled
Engine Brand :
KD156FMI-E
Bore x Stroke :
56.5 x 49.6
Compression Ratio :
9.5:1
Gear Type :
5 Speed
Clutch Type :
Hand Operated
Drive Type :
Chain
Start System :
Electric / Kick Start
Wheel, Suspension and Brakes
Front Tyre :
90/90-17
Rear Tyre :
130/70-17
Tyre Brand :
CST
Tyre Model :
Tubeless
Front Suspension :
Telescopic Forks
Rear Suspension :
Twin Shock Absorber
Front Brake :
Hydraulic Disc
Rear Brake :
Hydraulic Disc
Dimensions
Seat Height :
795 mm
Wheelbase :
1310 mm
Overall Length :
1980 mm
Overall Width :
766 mm
Overall Height :
1080 mm
Mass in Running Order :
130 kg
This is the weight/mass of an unladen vehicle but one which has all fluids correct and present within. It includes fuel in the tank to a minimum of 90% full.
Maximum Laden Mass :
280 kg
This is the maximum operating weight/mass of the vehicle as specified by the manufacturer including the vehicle's chassis, body, engine, engine fluids, fuel, accessories, rider, pillion and cargo.

This product is discontinued and no longer available to order

Lexmoto Assault 125 EFI Technical Data

Model Information
Minimum Licence Required
CBT or A1 (UK Entitlement)
Parking options
Centre and Side Stand
Shipping State
SKD - Semi Knocked Down
Fuel Tank Capacity
15 l
CAP/ABI Code
LXAS013EFDU5C AWB
Odometer Reading
Dual

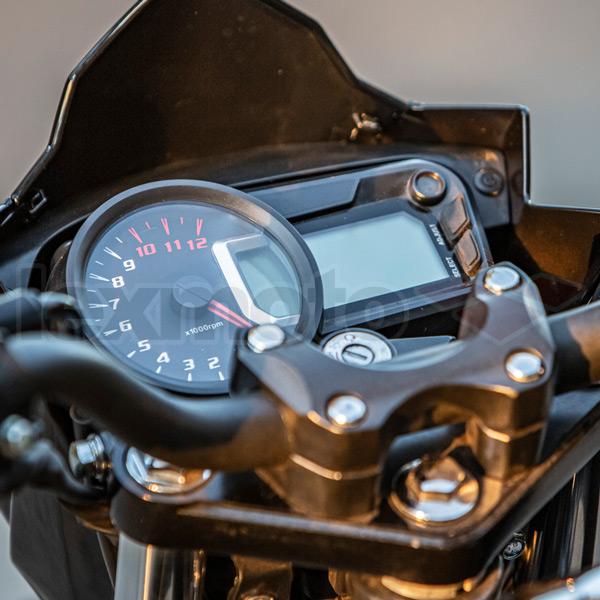

Speedo Type
Digital
Build Difficulty
4 - Challenging (Out of 5)
Power Output
Max. Power
8 @ 9000 kW @ RPM
Engine Settings
Capacity
125 cc
Compression Ratio
9.5:1
Stroke
4 Stroke
Valves per cylinder
2
Cylinders
Single
Cooling
Air Cooled
Idle Speed
1500 min-1
Bore x Stroke
56.5 x 49.6
Fuel System
EFI System
Yeson
EFI Plug Location
Under Seat
Valve Clearances
Exhaust Valve (Metric)
0.07-0.09 mm
Inlet Valve (Metric)
0.06-0.08 mm
Handling and Suspension
Fork Oil Volume
164 ml per leg
Tyre Pressures
Front
29 psi
Rear
33 psi

This product is discontinued and no longer available to order

Lexmoto Assault 125 EFI Gallery



** Pictures are for illustration purposes only

This product is discontinued and no longer available to order

Lexmoto Assault 125 EFI 360° View

Hold down the left mouse button on the bike and scroll side to side to rotate the bike.
0%

    This product is discontinued and no longer available to order

    Lexmoto Assault 125 EFI Media


    YouTube Videos
    The Lexmoto Assault - Versatile Agility Uploaded: Mar 12, 2020

    Lexmoto Assauly First Ride Uploaded: Mar 12, 2020

    * Recommended Retail Prices

    RRP Prices are inclusive of VAT and includes Full Assembly, Full Pre-delivery Inspection (PDI) and a 24-month warranty, but can vary according to different geographic locations as Dealers may incorporate more comprehensive warranty and service plans into their pricing and may also offer accessories or other services above standard sales. Prices in Scotland, NI and offshore islands may be higher. Government first registration fee and vehicle excise duty are not included and will be charged at the current rate except for the cost of the physical number plate, which will be included in the price of the vehicle.
